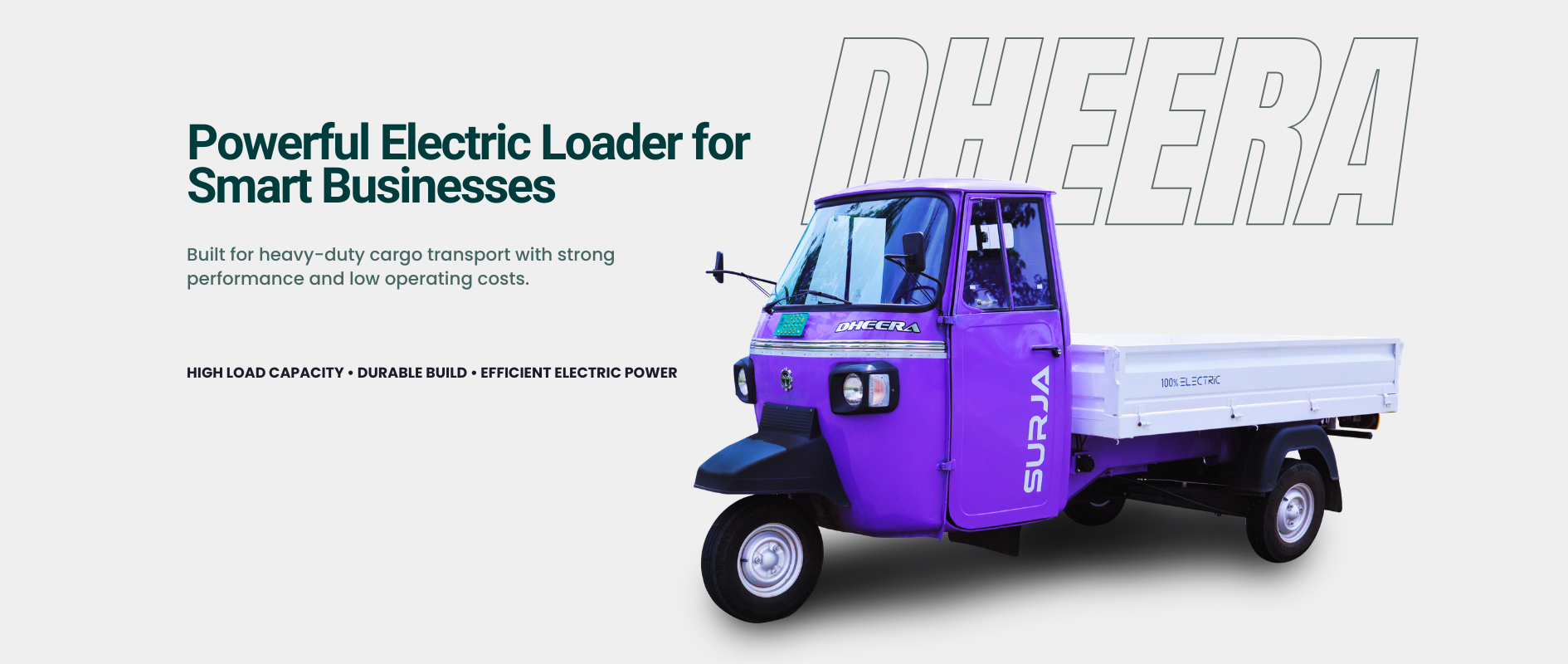

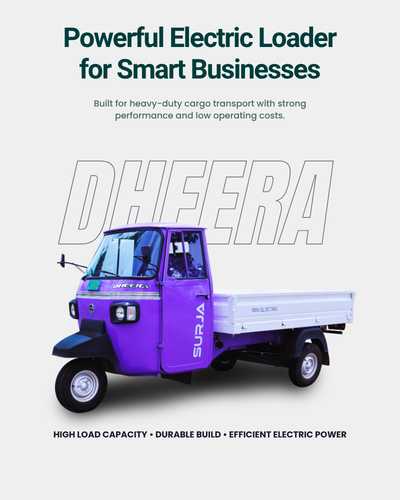

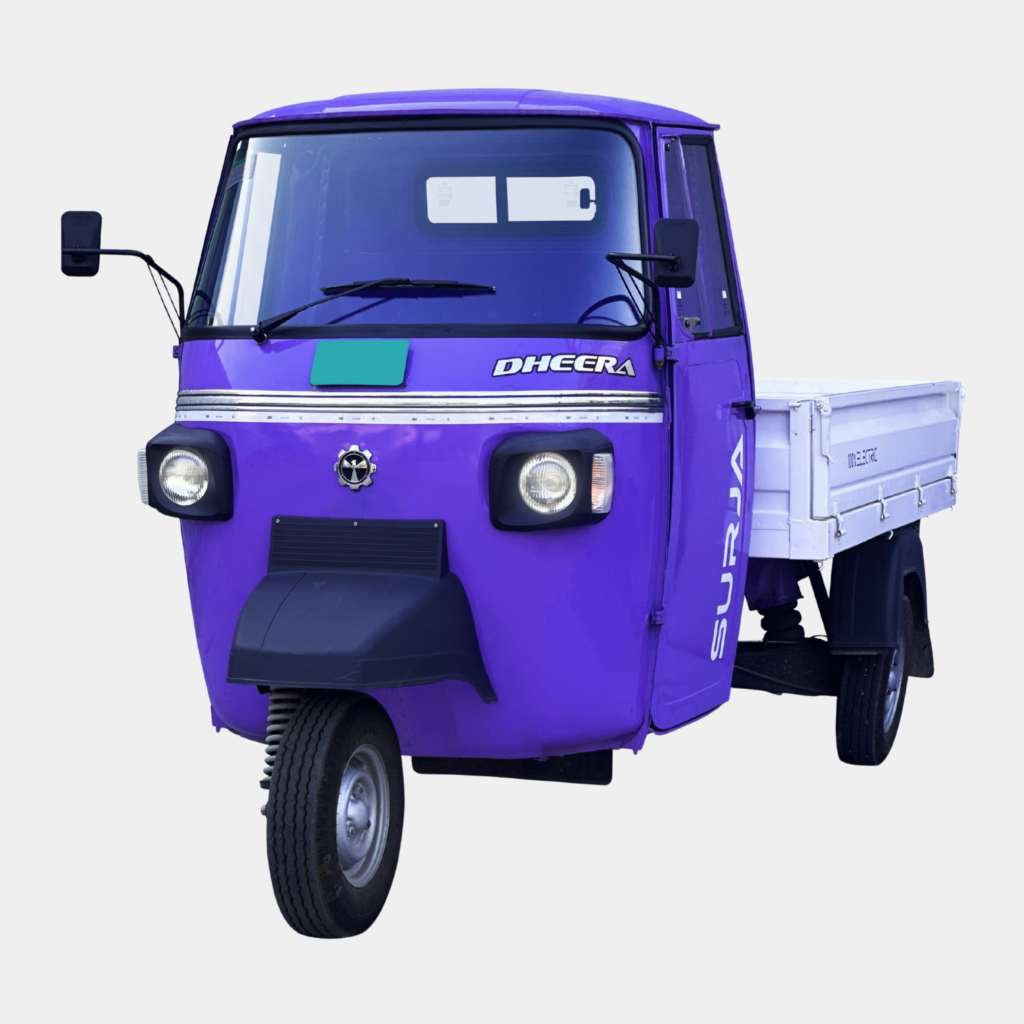

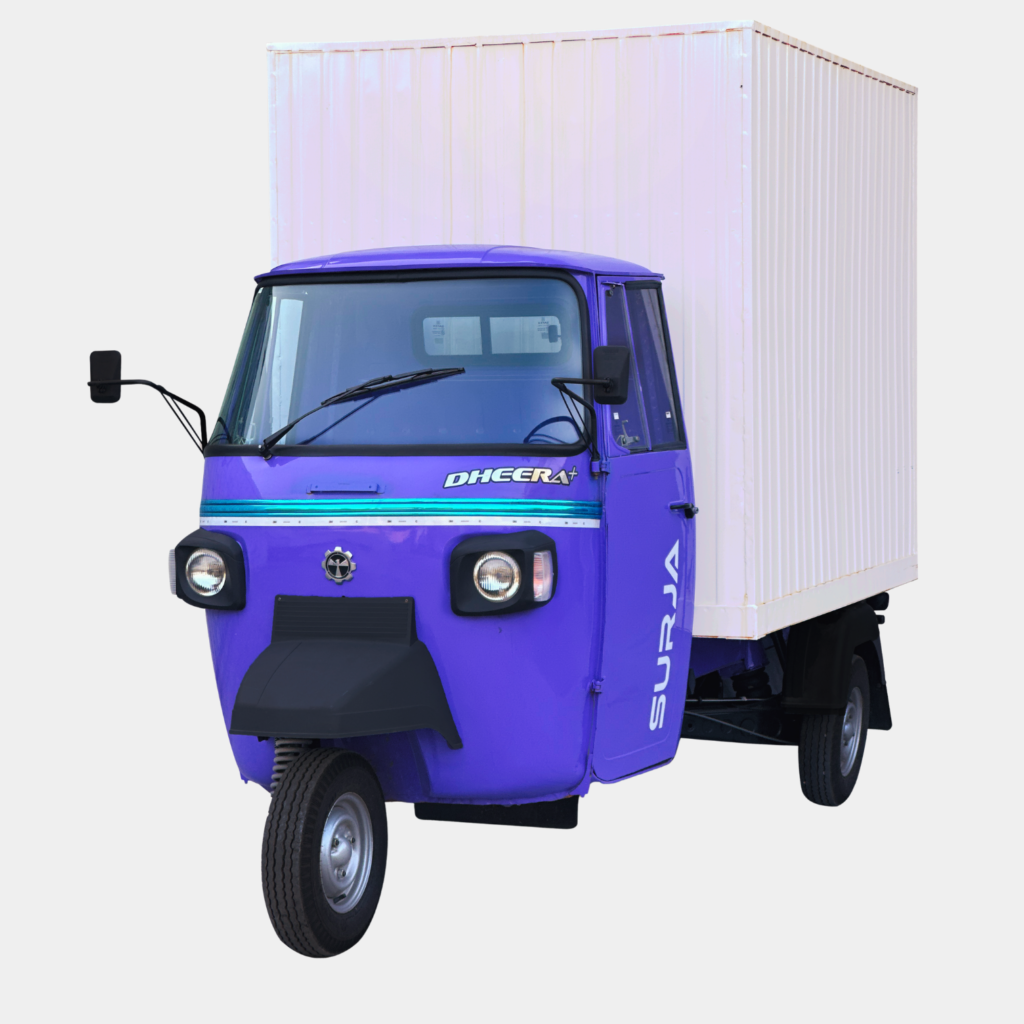

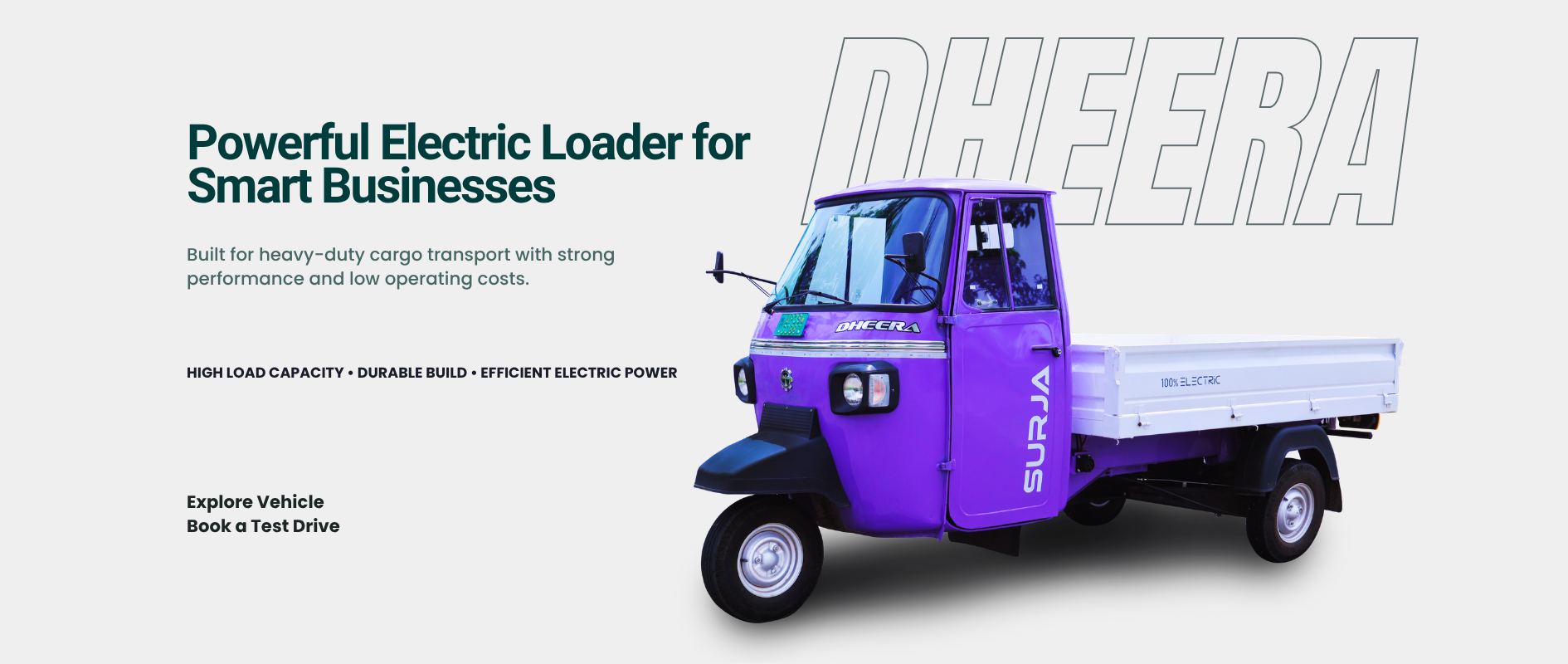

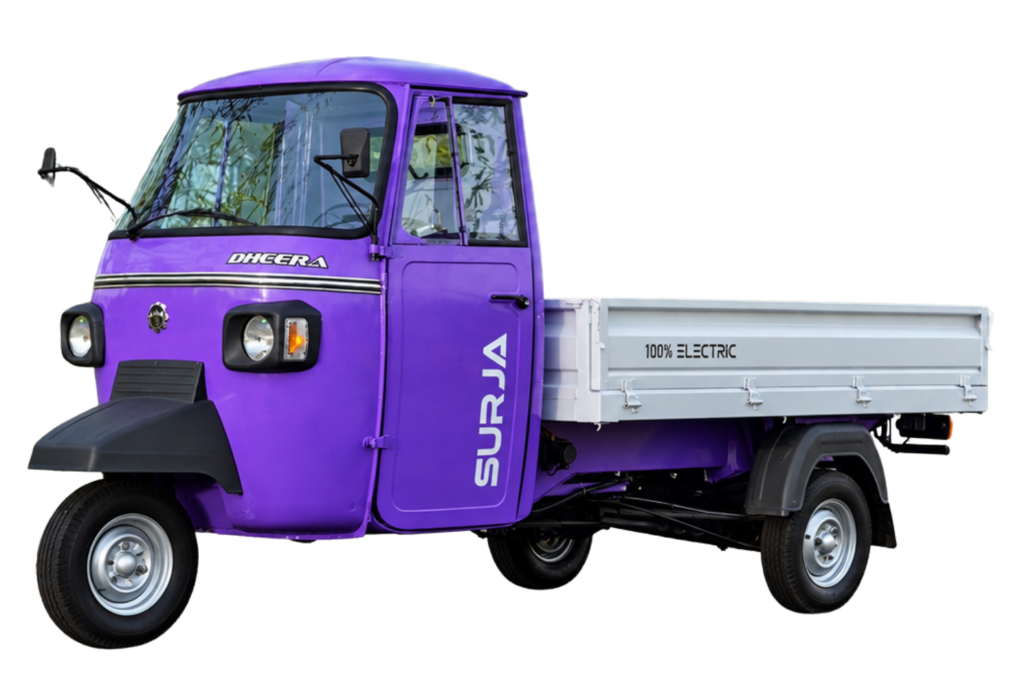

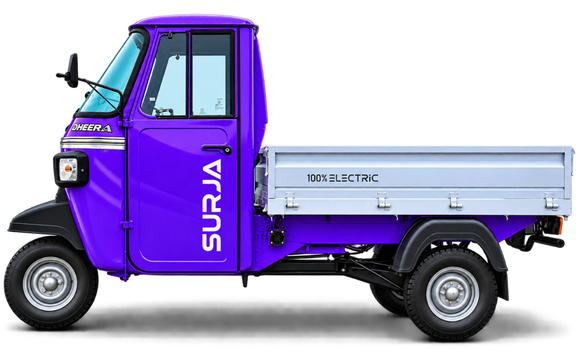

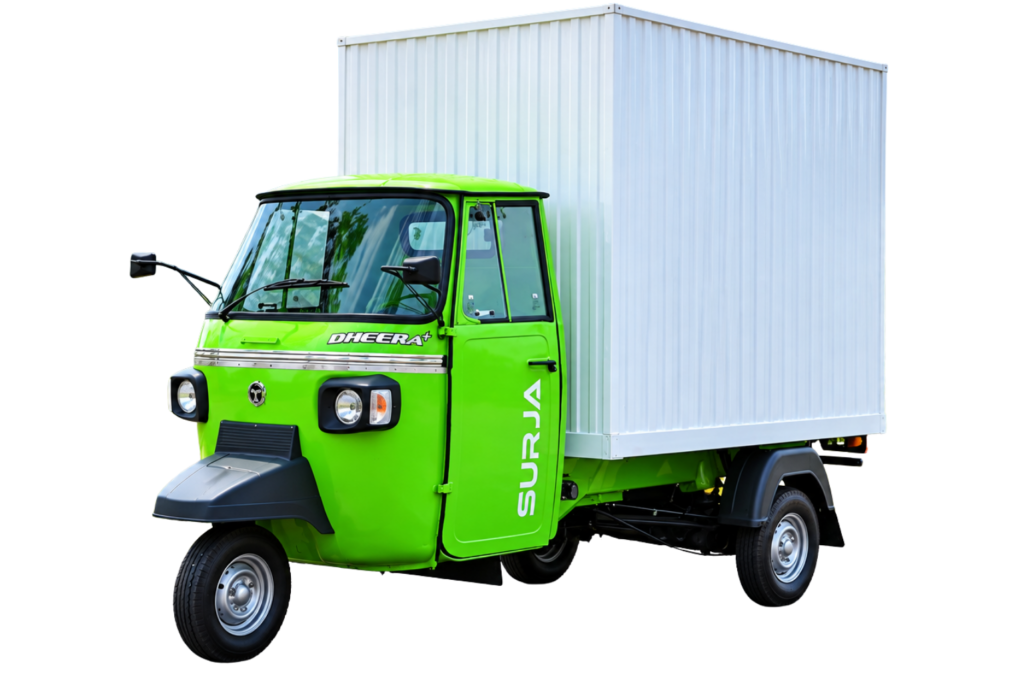

DHEERA EV 3W L5N CARGO SPECS

Motor

Max Power	12 kW
Top Speed	50 Kmph
Peak Motor Torque	65 Nm
Transmission	Single Speed Gearbox

Battery

Battery Capacity	10 kWh
Home Charging Time	4 Hours
Fast Charging (20% to 80%)	Less than 1 hour

Perfomance

ARAI Certified range	196 Kms
Gradeability	20%

Dimensions

Vehicle Dimensions (L x W x H)	3420 x 1460 x 1670 mm
Vehicle Tray Dimensions (L x W x H)	2100 x 1460 x 370 mm
Ground Clearance	230 mm
Vehicle GVW	1100 kg
Kerb Weight	530 kg
Payload	570 kg

Suspension & Brakes

Suspension Front	Helical spring with dampener and Hydraualic telescopic shock Absorber
Suspension rear	Helical spring with dampener and Hydraualic telescopic shock Absorber
Brakes	Hydralic Brake
